Header Blocks

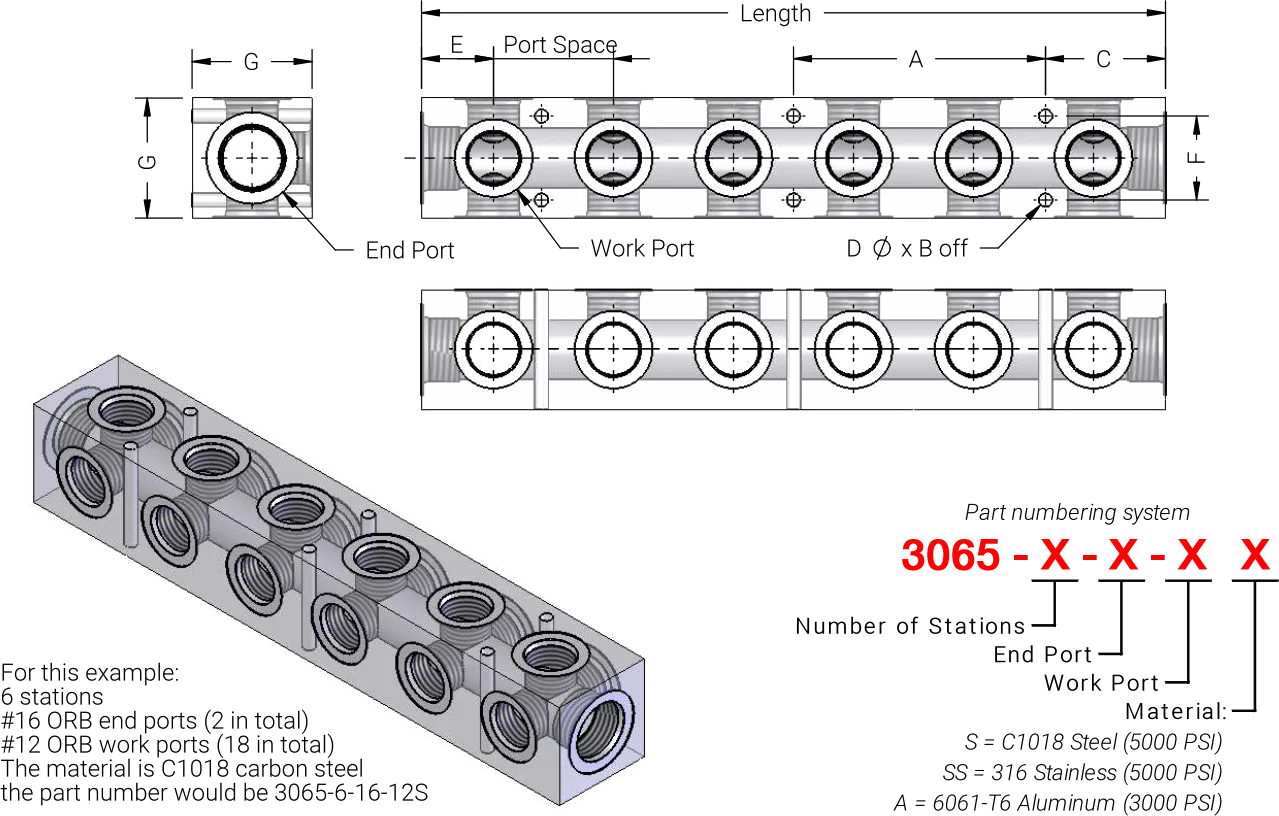

Header Block - ORB Tee
Checking for product data from the server...
or contact them here:
CONTACT PAGE
All ports connected
| Part Number | Station Count | End Port Size | Work Port Size | Length | A | B | C | D | Port Space | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | #12 (1-1/16"-12) | #8 (3/4"-16) | 4.75 | - | 4 | 2.38 | 9/32 | 2.00 | 1.38 | 1.50 | 2.00 | |
3 | 6.75 | - | 4 | |||||||||
4 | 8.75 | - | 4 | |||||||||
6 | 12.75 | 5.00 | 6 | |||||||||
8 | 16.75 | 7.00 | 6 | |||||||||
10 | 20.75 | 9.00 | 6 | |||||||||
2 | #16 (1-5/16"-12) | #12 (1-1/16"-12) | 5.50 | - | 4 | 2.75 | 9/32 | 2.50 | 1.50 | 1.75 | 2.50 | |
3 | 8.00 | - | 4 | |||||||||
4 | 10.50 | - | 4 | |||||||||
6 | 15.50 | 6.25 | 6 | |||||||||
8 | 20.50 | 8.75 | 6 | |||||||||
10 | 25.50 | 11.25 | 6 | |||||||||
2 | #20 (1-5/8"-12) | #16 (1-5/16"-12) | 6.25 | - | 4 | 3.13 | 13/32 | 2.75 | 1.75 | 2.25 | 3.00 | |
3 | 9.00 | - | 4 | |||||||||
4 | 11.75 | - | 4 | |||||||||
6 | 17.25 | 6.88 | 6 | |||||||||
8 | 22.75 | 9.63 | 6 | |||||||||
10 | 28.25 | 12.38 | 6 | |||||||||
2 | #24 (1-7/8"-12) | #20 (1-5/8"-12) | 7.50 | - | 4 | 3.75 | 17/32 | 3.50 | 2.00 | 2.50 | 3.50 | |
3 | 11.00 | - | 4 | |||||||||
4 | 14.50 | - | 4 | |||||||||
6 | 21.50 | 10.50 | 6 | |||||||||
8 | 28.50 | 12.25 | 6 | |||||||||
2 | #32 (2-1/2"-12) | #24 (1-7/8"-12) | 8.25 | - | 4 | 4.13 | 17/32 | 4.00 | 2.13 | 3.00 | 4.00 | |
3 | 12.25 | - | 4 | |||||||||
4 | 16.25 | 4 | ||||||||||
6 | 24.25 | 10.00 | 6 |
