Code 61 & Code 62 O-Ring Head (ORH) Plugs & Bushings

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

Code 61 O-Ring Head (ORH) Plugs
Code 61 ORH Plug	Code 61 ORH Size	O-Ring	C	L
1830-08	0.50	1.000	1.188	0.63
1830-12	0.75	1.250	1.500	0.69
1830-16	1.00	1.560	1.750	0.69
1830-20	1.25	1.750	2.000	0.69
1830-24	1.50	2.115	2.375	0.75
1830-32	2.00	2.490	2.812	0.75
1830-40	2.50	2.995	3.312	0.81
1830-48	3.00	3.615	4.000	0.88
1830-56	3.50	4.095	4.500	1.00
1830-64	4.00	4.595	5.000	1.13

Code 62 O-Ring Head (ORH) Plugs
Code 62 ORH Plug	Code 62 ORH Size	O-Ring	C	L
1646-08	0.50	1.000	1.250	0.69
1646-12	0.75	1.250	1.625	0.81
1646-16	1.00	1.560	1.875	0.94
1646-20	1.25	1.750	2.125	1.13
1646-24	1.50	2.115	2.500	1.31
1646-32	2.00	2.490	3.125	1.63

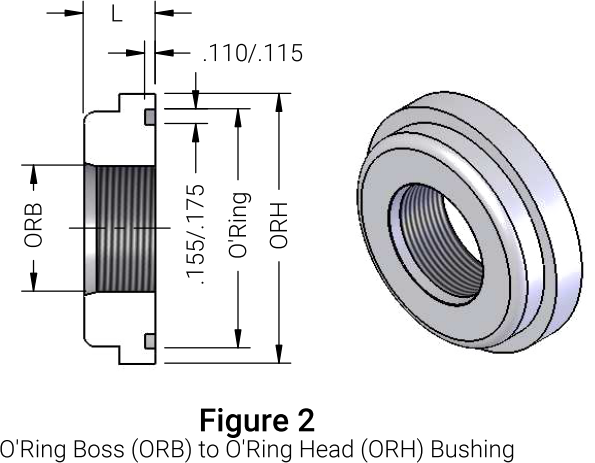

O-Ring Boss (ORB) to Code 61 O-Ring Head (ORH) Bushing

O-Ring Boss (ORB) to Code 61 O-Ring Head (ORH) Bushing
Code 61 ORB/ORH	ORB (thread)	Code 61 ORH Size	O-Ring	C	L
2732-06-20	#6 (9/16"-48)	1.25	1.750	2.000	0.69
2732-06-24	#6 (9/16"-48)	1.50	2.115	2.375	0.75
2732-12-24	#12 (1-1/16"-12)	1.50	2.115	2.375	0.75
2732-06-32	#6 (9/16"-48)	2.00	2.490	2.812	0.75
2732-12-32	#12 (1-1/16"-12)	2.00	2.490	2.812	0.75
2732-16-32	#16 (1-5/16"-12)	2.00	2.490	2.812	0.75
2732-08-40	#8 (3/4"-16)	2.50	2.995	3.312	0.81
2732-12-40	#12 (1-1/16"-12)	2.50	2.995	3.312	0.81
2732-16-40	#16 (1-5/16"-12)	2.50	2.995	3.312	0.81
2732-08-48	#8 (3/4"-16)	3.00	3.615	4.000	0.88
2732-12-48	#12 (1-1/16"-12)	3.00	3.615	4.000	0.88
2732-16-48	#16 (1-5/16"-12)	3.00	3.615	4.000	0.88
2732-08-56	#8 (3/4"-16)	3.50	4.095	4.500	1.00
2732-12-56	#12 (1-1/16"-12)	3.50	4.095	4.500	1.00
2732-16-56	#16 (1-5/16"-12)	3.50	4.095	4.500	1.00
2732-08-64	#8 (3/4"-16)	4.00	4.595	5.000	1.13
2732-12-64	#12 (1-1/16"-12)	4.00	4.595	5.000	1.13
2732-16-64	#16 (1-5/16"-12)	4.00	4.595	5.000	1.13

O-Ring Boss (ORB) to Code 62 O-Ring Head (ORH) Bushing
Code 62 ORB/ORH	ORB (thread)	Code 62 ORH Size	O-Ring	C	L
2733-06-20	#6 (9/16"-48)	1.25	1.750	2.125	1.13
2733-06-24	#6 (9/16"-48)	1.50	2.115	2.500	1.31
2733-12-24	#12 (1-1/16"-12)	1.50	2.115	2.500	1.31
2733-06-32	#6 (9/16"-48)	2.00	2.490	3.125	1.63
2733-12-32	#12 (1-1/16"-12)	2.00	2.490	3.125	1.63
2733-16-32	#16 (1-5/16"-12)	2.00	2.490	3.125	1.63
