Code 61 & Code 62 Split Flange Kits

STEP Files

A 3d button beside a part number indicates that a 3D model is available for that product. Click the button to view and interact with the 3D model.

Code 61 Split Flange Kits

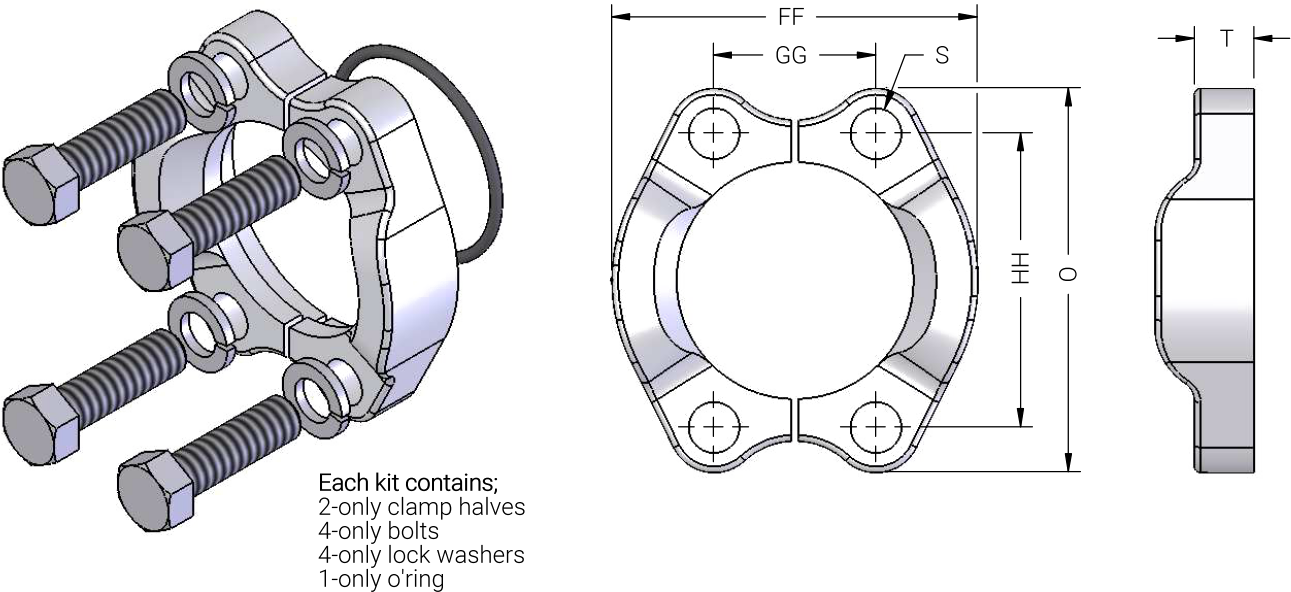

Code 61 Part Number	GG	HH	FF	O	S	T	Bolt Thread	O-Ring
1585-08	0.688	1.500	1.81	2.12	0.34	0.50	5/16"-18	2-210-N90
1585-12	0.875	1.875	2.06	2.56	0.41	0.56	3/8"-16	2-214-N90
1585-16	1.031	2.062	2.31	2.75	0.41	0.62	3/8"-16	2-219-N90
1585-20	1.188	2.312	2.88	3.12	0.47	0.62	7/16"-14	2-222-N90
1585-24	1.406	2.750	3.25	3.69	0.53	0.62	1/2"-13	2-225-N90
1585-32	1.688	3.062	3.81	4.00	0.53	0.62	1/2"-13	2-228-N90
1585-40	2.000	3.500	4.28	4.50	0.53	0.75	1/2"-13	2-232-N90
1585-48	2.438	4.188	5.16	5.31	0.66	0.88	5/8"-11	2-237-N90
1585-56	2.750	4.750	5.50	6.00	0.66	0.88	5/8"-11	2-241-N90
1585-64	3.062	5.125	6.00	6.38	0.66	1.00	5/8"-11	2-245-N90

Code 62 Split Flange Kits
Code 62 Part Number	GG	HH	FF	O	S	T	Bolt Thread	O-Ring
1825-08	0.718	1.574	1.88	2.22	0.34	0.62	5/16"-18	2-210-N90
1825-12	0.937	2.000	2.38	2.81	0.41	0.75	3/8"-16	2-214-N90
1825-16	1.093	2.250	2.75	3.19	0.47	0.94	7/16"-14	2-219-N90
1825-20	1.250	2.625	3.06	3.75	0.53	1.06	1/2"-13	2-222-N90
1825-24	1.437	3.125	3.75	4.44	0.66	1.19	5/8"-11	2-225-N90
1825-32	1.750	3.812	4.50	5.25	0.78	1.44	3/4"-10	2-228-N90
