Inline Check Valves
O-Ring Boss (ORB) Inline Check Valves
Checking for product data from the server...
or contact them here:
CONTACT PAGE
| Female ORB to Male ORB | ||
|---|---|---|

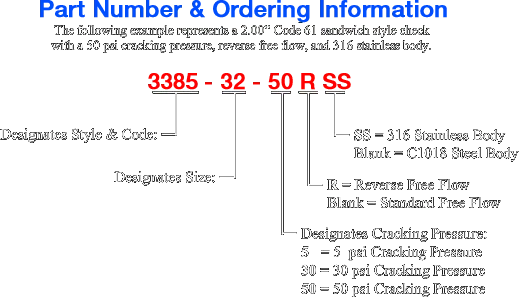

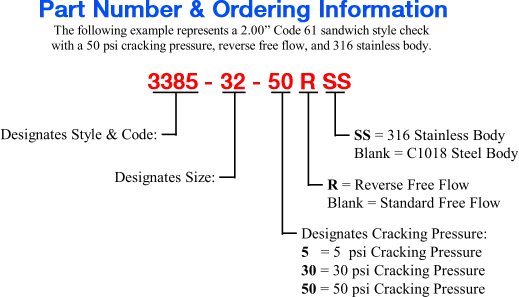

| Part No. | Female ORB | Male ORB |
3024-20-53d 3024-20-5R3d 3024-20-303d 3024-20-30R3d 3024-20-503d 3024-20-50R3d | #20 (1-5/8”-12) | #20 (1-5/8”-12) |
3024-24-53d 3024-24-5R3d 3024-24-303d 3024-24-30R3d 3024-24-503d 3024-24-50R3d | #24 (1-7/8”-12) | #24 (1-7/8”-12) |
3024-32-53d 3024-32-5R 3024-32-303d 3024-32-30R 3024-32-503d 3024-32-50R | #32 (2-1/2”-12) | #32 (2-1/2”-12) |

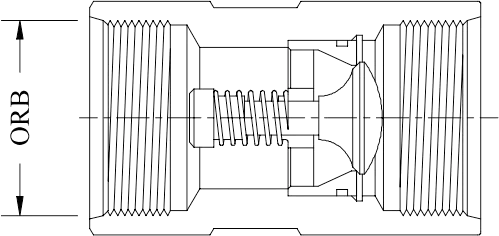

| Female ORB to Female ORB | ||
|---|---|---|
| Part No. | Female ORB | Female ORB |
3025-20-53d 3025-20-303d 3025-20-503d | #20 (1-5/8”-12) | #20 (1-5/8”-12) |
3025-24-53d 3025-24-303d 3025-24-503d | #24 (1-7/8”-12) | #24 (1-7/8”-12) |
3025-32-53d 3025-32-303d 3025-32-503d | #32 (2-1/2”-12) | #32 (2-1/2”-12) |
Sealum Industries offers check valves in three cracking pressures, 5 PSI, 30 PSI, and 50 PSI. The poppets are machined from 4140 heat treated steel, while the seats are machined from 65-45-12 cast iron. The bodies are stocked in C1018 steel, but are also available in 316 stainless steel upon request. The stem is welded to the poppet for a positive lock, and the entire assembly is held in the body with a retaining ring.
