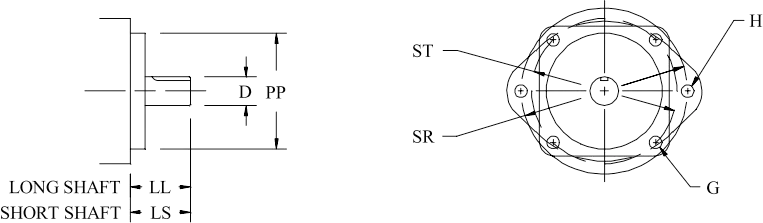

SAE Pump Specification
| Pump Size | PP (Pilot) | 4-Bolt Mount ST | 4-Bolt Mount G | 2-Bolt Mount SR | 2-Bolt Mount H | Straight Shaft LL | Straight Shaft LS | Straight Shaft D |
|---|---|---|---|---|---|---|---|---|
1.78 | 1.78 | 2.84 | 0.38 | - | - | - | - | - |
AA | 2.00 | - | - | 3.25 | 0.41 | - | 1.06 | 0.50 |
A | 3.25 | 4.13 | 0.44 | 4.19 | 0.44 | 2.31 | 1.25 | 0.63 |
B | 4.00 | 5.00 | 0.56 | 5.75 | 0.56 | 2.81 | 1.63 | 0.88 |
C | 5.00 | 6.38 | 0.56 | 7.13 | 0.69 | 3.31 | 2.19 | 1.25 |
D | 6.00 | 9.00 | 0.81 | 9.00 | 0.81 | 3.94 | 2.94 | 1.75 |
E | 6.50 | 12.50 | 0.81 | 12.50 | 0.81 | 3.94 | 2.94 | 1.75 |
F | 7.00 | 13.78 | 1.06 | 13.78 | 1.06 | - | - | - |
